Description
Product Details:

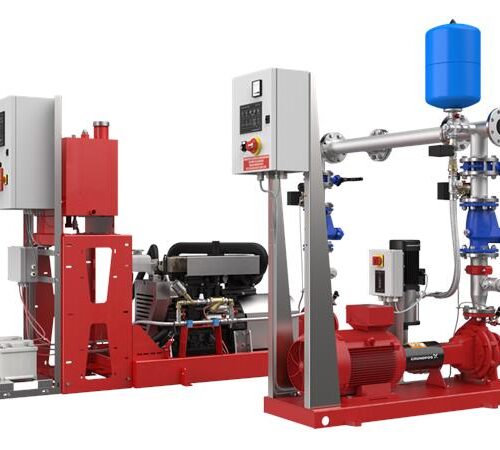

- Product Name: Hydro EN 40-250/210 TJS A-U2-A-A
- Product No: 92806261
- EAN number: 5715119865024
Technical:
- Rated flow: 63.5 m³/h
- Rated head: 43.1 m
- Diesel cooling flow: 1 m³/h
- Nominal impeller diameter: 250 mm
- Approvals: CE
- Fire standard: EN 12845
- Maximum allowed back pressure: 3.00 kPa
- Number of pumps: 2
- Main pump type: NKF 40-250/210
- Number of diesel driven pumps: 1
- Jockey pump type: CM3-10
- Number of jockey pumps: 1
Materials:
- Pump housing: Cast iron EN-GJL-250
- Impeller: Bronze
- Manifold: Galvanized steel
Installation:
- Range of ambient temperature: 10 – 40 °C
- Relative humidity: 50 %
- Maximum operating pressure: 16 bar
- Type of inlet connection: DIN
- Type of outlet connection: DIN
- Size of inlet connection: DN 65
- Size of outlet connection: DN 65
- Type of inlet connection for Jockey pump: Rp
- Size of inlet connection for Jockey pump: 1 1/4 inch
- Earth connection: PE
- Elevation above sea level: 300 m
Liquid:
- Liquid: Water
- Liquid temperature range: 0 – 40 °C
- Selected liquid temperature: 20 °C
- Density: 998.2 kg/m³
Electrical data:
- Motor standard: IEC
- Driver type: Diesel engine
- Mains frequency: 50 Hz
- Motor nominal speed (w/o slip): 2940 rpm
- Enclosure class (IEC 34-5): IP54
- Motor standard for jockey pump: IEC
- Mains supply for jockey motor: 3 x 400 V
- Rated power – P2 for jockey pump: 1.5 kW
- Rated current for jockey pump: 3.3 A
- Number of poles for jockey pump: 2
- Method of start for jockey pump: Direct-on-Line (DOL)
Engine data:
- Mains supply for diesel motor: 1 x 230 V
- Engine gross power NB: 12.3 kW
- Engine continuous power NA: 11.2 kW
- Battery: 12 V
- Engine cooling type: Air cooled
- Exhaust flow: 159 m³/h
- Exhaust flow: 93 kg/h
- Engine aspiration: Natural aspirated
- Heat radiation: 10200 kcal/h
- Maximum allowed back pressure: 3.00 kPa
- Maximum exhaust temperature: 490 °C
Others:
- Net weight: 421 kg
- Gross weight: 484 kg
