Description
Product Details:

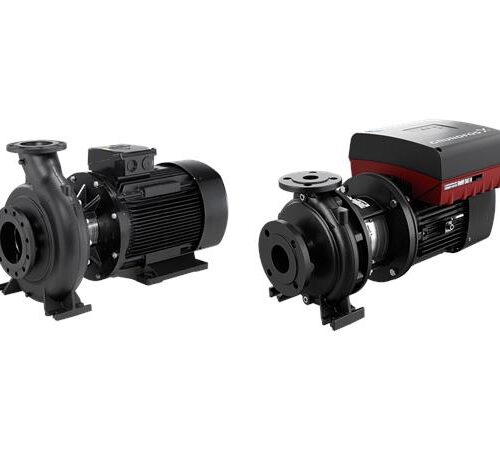

- Product name: NBE 150-200/224 AAFIESBQQEOWA
- Product No: 96834660
- EAN number: 5700311524411
- Price: [Not provided in image]
Technical:
- Pump speed on which pump data are based: 1447 rpm
- Rated flow: 396.2 m³/h
- Rated head: 8.963 m
- Actual impeller diameter: 224 mm
- Nominal impeller diameter: 200
- Shaft seal arrangement: Single
- Primary shaft seal: BQQE
- Shaft diameter: 32 mm
- Code for shaft seal: BQQE
- Curve tolerance: ISO9906:2012 3B
- Pump version: A
- Bearing design: Standard
Materials:
- Pump housing: Cast iron EN-GJL-250
- Wear ring: ASTM class 35 Brass CuZn34Mn3Al2Fe1-C
- Impeller: Cast iron EN-GJL-200 ASTM class 30
- Internal pump house coating: CED
- Material code: A
- Code for rubber: E
- Shaft: Stainless steel EN 1.4301 AISI 304
Installation:
- Range of ambient temperature: -20 .. 50 °C
- Maximum operating pressure: 10 bar
- Pipe connection standard: EN 1092-2
- Size of inlet connection: DN 200
- Size of outlet connection: DN 150
- Pressure rating for connection: PN 10
- Bearing lubrication: Grease
- Pump housing with feet (Yes/No): Yes
- Support block (Yes/No): N
- Connect code: F1
Liquid:
- Pumped liquid: Water
- Liquid temperature range: -25 .. 120 °C
- Selected liquid temperature: 20 °C
- Density: 998.2 kg/m³
Electrical data:
- Rated power – P2: 15 kW
- Mains frequency: 50 Hz
- Rated voltage: 3 x 380-480 V
- Rated current: 26.7-21.8 A
- Cos phi – power factor: 0.94-0.91
- Rated speed: 180-2200 rpm
- IE Efficiency class: IE5
- Motor efficiency at full load: 93.0 %
- Number of poles: 4
- Enclosure class (IEC 34-5): IP55
- Insulation class (IEC 85): F
- Built-in motor protection: ELEC
- Motor No: 92875535
- Mount. design. acc. IEC 34-7: IM B35
- Bearing insulation type N-end: Steel Bearing
Controls:
- Control panel: HMI300 – Advanced
- Function Module: FM310 – Advanced
- Frequency converter: Built-in
- Pressure sensor: N
Others:
- Minimum efficiency index, MEI ≥: 0.70
- Net weight: 283 kg
- Gross weight: 316 kg
- Shipping volume: 0.951 m³
- Language on pump nameplate: GB
