Description
Product Details:

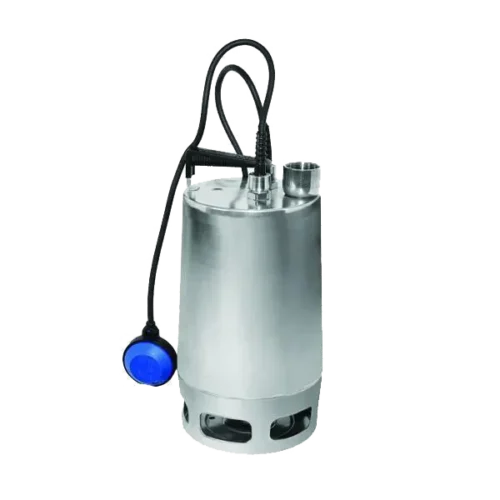

- Product name: UNILIFT AP50.50.11.A3.V
- Product No: 96010934
Technical:
- Maximum flow: 8.89 l/s
- Maximum head: 13 m
- Type of impeller: VORTEX
- Max. Particle: 50 mm
Materials:
- Pump housing: Stainless steel EN 1.4301 AISI 304
- Impeller: Stainless steel EN 1.4301 AISI 304
Installation:
- Range of ambient temperature: 0 .. 55 °C
- Type of connection: Rp
- Size of connection: 2 inch
- Maximum installation depth: 7 m
- Inst dry/wet: D/S
Liquid:
- Liquid temperature range: 0 .. 55 °C
- Selected liquid temperature: 20 °C
- Density: 998.2 kg/m³
Electrical data:
- Power input P1: 1.6 kW
- Rated power – P2: 1.2 kW
- Mains frequency: 50 Hz
- Rated voltage: 3 x 200 V
- Rated current: 6 A
- Cos phi – power factor: 0.85
- Rated speed: 2780 rpm
- Enclosure class (IEC 34-5): IP68
- Insulation class (IEC 85): F
- Built-in motor protection: NONE
- Thermal protec: external
- Length of power cable: 10 m
- Type of cable plug: NONE
Controls:
- Level switch: A
Others:
- Net weight: 17.9 kg
- Gross weight: 18.7 kg
